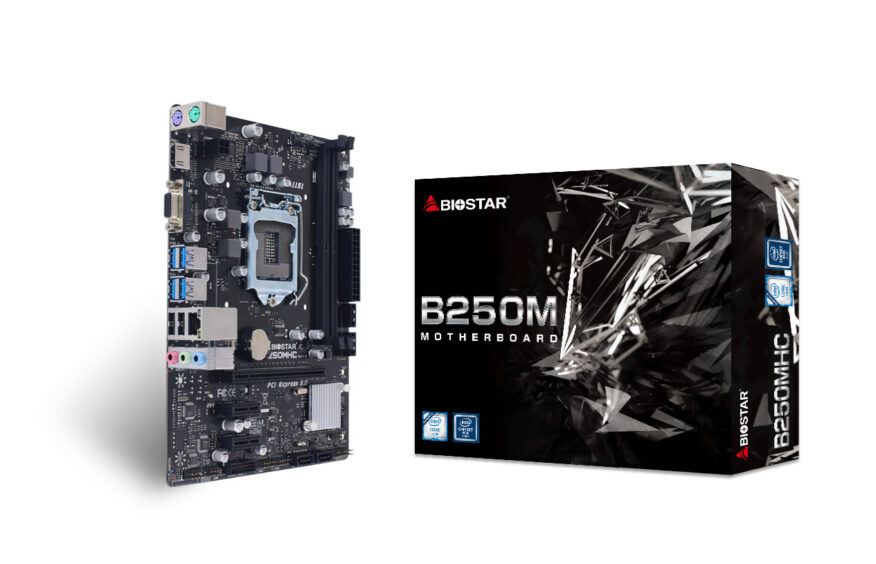

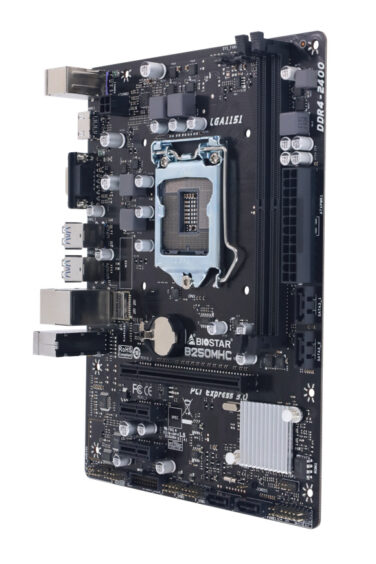

Designed based on Intel’s B250 single chip architecture, the new B250MHC motherboard from BIOSTAR is engineered to breathe fresh life to older 6th and 7th generation processors from Intel.
Highly suited for business-oriented systems, the B250MHC motherboard comes with the latest technology in the market with BIOSTAR’s promised product reliability and long-lasting performance. Capable of supporting up to 32GB of DDR4 memory across 2 DIMM slots, the B250MHC also carries features like PCIe 3.0 which provides increases channel improvement with enhanced signal and data integrity over 8GT/s bit rate as well as USB 3.2 Gen 1 which provides data transfer speeds up to 5Gbps for speedy data backup and restore over USB data transfer devices.
Engineered to work well with Core i3, i5, i7, Pentium and Celeron processors from Intel’s B250 microchip architecture, the B250MHC motherboard bolsters a 4-phase power design to help manage the power distribution across all hardware installed with the motherboard for a smooth unhindered performance.

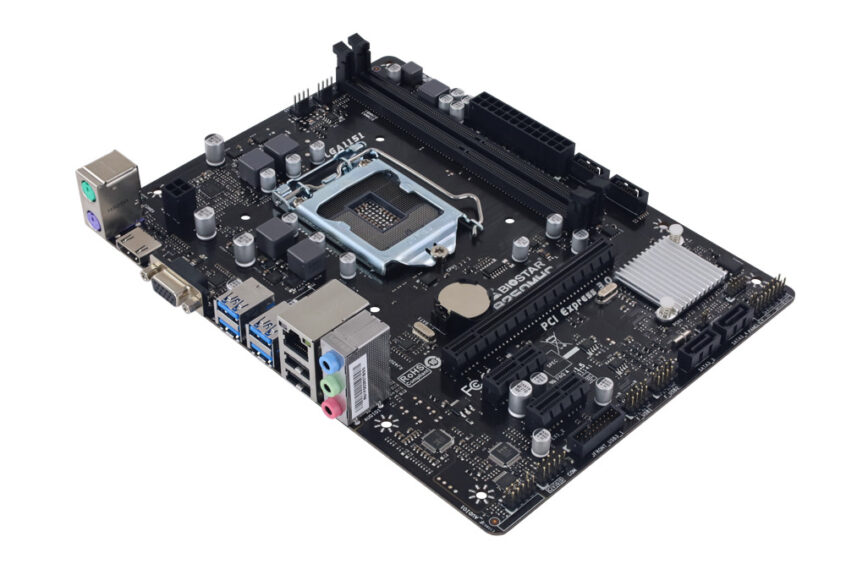

When it comes to rear I/O the new B250MHC has all the bells and whistles covered to be a great motherboard for a business or casual use with multiple connectivity options like 1 x PS/2 Keyboard and 1 x PS/2 Mouse port for users looking to connect their old keyboard or mouse to the system, dual display output capability with 1 x VGA port and a HDMI port that expresses bright and highly detailed content for users to enjoy lifelike images and video while enjoying gaming and casual content consumption.
Furthermore, the B250MHC motherboard is equipped with a single GbE LAN port powered by Realtek’s RTL8111H chipset as well as 4 x USB 3.2 (Gen1) ports, 2 x USB 2.0 ports and 3 x Audio connectors controlled by ALC887 technology capable of handling 7.1 Channels of High Definition Audio.
BIOSTAR’s new B250MHC motherboard is ultimately a great choice for business and casual use, be it may for system integrated build for a client data management pc or an internet cafe system for casual web browsing and multimedia consumption.
Key features:
DDR4
- Improves lower power consumption and data integrity
- Delivers higher performance and higher DIMM capacities
PCIe 3.0
- Carries a bit rate of 8GT/s
- Enhances signal and data integrity
- Increases channel improvement
HDMI
- Enjoy TV shows and movie online
- Fills the entire screen with lifelike images
- Expresses bright and highly detailed content
USB 3.2 Gen 1
- Data transfer speeds up to 5Gbps
- Delivers compelling performance boost
- Backward compatible with all existing USB products
Spec Table:
| Chipset | INTEL B250 |
| CPU SUPPORT | Socket 1151 for Intel Core i7 / i5 / i3 / Pentium / Celeron processors 4 Power Phase Design *Please refer to www.biostar.com.tw for CPU support list. |
| MEMORY | Supports Dual Channel DDR4 1866/2133/2400 2 x DDR4 DIMM Memory Slots, Max. Supports up to 32 GB Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module *DDR4-2400 for 7th Generation Intel Core Processor Family *Please refer to www.biostar.com.tw for Memory support list. |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 4 x SATA III Connectors (6Gb/s): Supports AHCI |
| LAN | RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| CODEC | ALC887 7.1 Channels, High Definition Audio |
| USB | 6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) |
| EXPANSION SLOT | 2 x PCIe 3.0 x1 Slots 1 x PCIe 3.0 x16 Slot |
| REAR I/O | 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x VGA Port 1 x HDMI Port 1 x LAN Port 2 x USB 2.0 Ports 4 x USB 3.2 (Gen1) Ports 3 x Audio Jack |
| INTERNAL I/O | 4 x SATA III Connectors (6Gb/s) 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 4-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring |
| DIMENSION | Micro-ATX Form Factor: 22.6 cm x 17.1 cm |
| OS SUPPORT | Windows 7 (32/64bit) / 8.1(64bit) / 10(64bit) *Windows 7 (32/64bit) / 8.1(64bit) for 6th Generation Intel Core Processor Family only *BIOSTAR reserves the right to add or remove support for any OS with or without notice. |
| ACCESSORIES | 2 x SATA Cables 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
Learn more about B250MHC:
https://www.biostar.com.tw/app/en/mb/introduction.php?S_ID=997
