LIAN LI joins forces again with Germany’s renowned overclocker Der8auer to design the O11 Dynamic XL, a bigger and improved version of the award-winning O11 Dynamic. Built with the user’s feedback in mind, the O11D XL is set to become the PC chassis of choice for custom loop water cooling, workstation powerhouse build, and gaming enthusiasts for maximum customization.
For cooling performance
Made from aluminum and tempered glass, available in black or white, the O11 Dynamic XL is loaded with features to make every PC DIY project a dream come true. Bigger in every way (O11XL D 471mm, H 513mm, W 285mm vs. O11D D 445mm, H446mm, W272mm), cool options becomes limitless.Water cooling enthusiasts can use thicker and longer radiators as well as taller GPU water blocks. Or if air cooling is used instead, the O11 Dynamic XL can accommodate some of the largest tower coolers on the market. Lastly, the increased width of 285mm, provides improved airflow with the option of adding a 120mm fan at the rear.

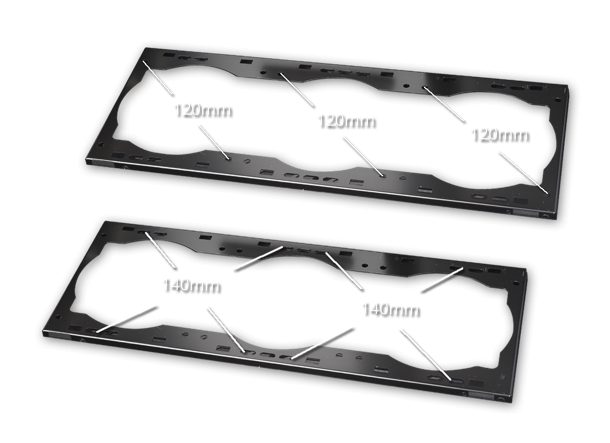

In order to make the building process as pain-free as possible, the bottom of the chassis features are removable radiator bracket to make mounting the radiator a simple task. No more flipping the chassis around to screw everything down, simply take the bracket out, mount it on, and clip it back.
For the Work Station dream PC

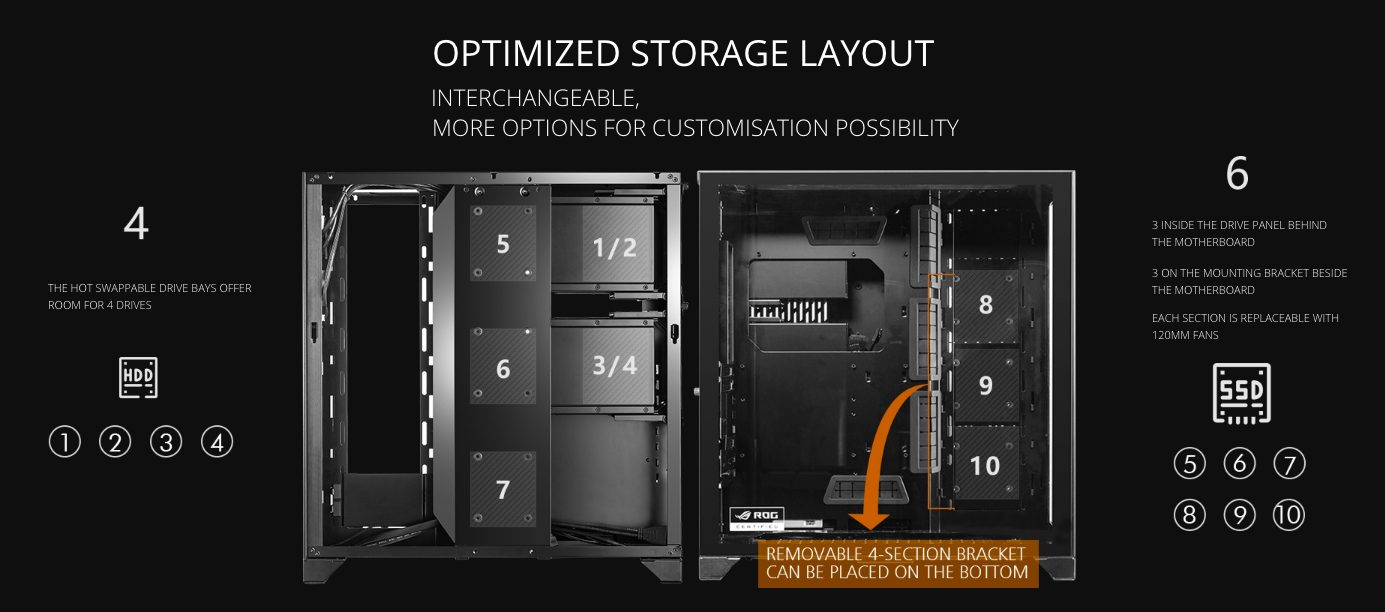

Keeping the 3D content creator and designers in mind, LIAN LI put together the solution of choice with the O11D XL. Capable to handle up to E-ATX and EEB (ie. X599 ASUS Dominance Extreme) motherboards for the most powerful CPU support, the space behind the motherboard tray now features four hot-swappable HDD/SSD bays as well as three additional SSD space behind the cable management bar. The additional cover/SSD trays mounted on the side radiator area gives the possibility to the user to either choose to install SSDs or remove the tray to mount fans or a radiator. The modularity of these trays also allows for placement of the SSDs on the bottom of the case. In total, up to 10 SSDs can be mounted to accommodate the user’s tremendous storage needs.
For an all-out Asus ROG look

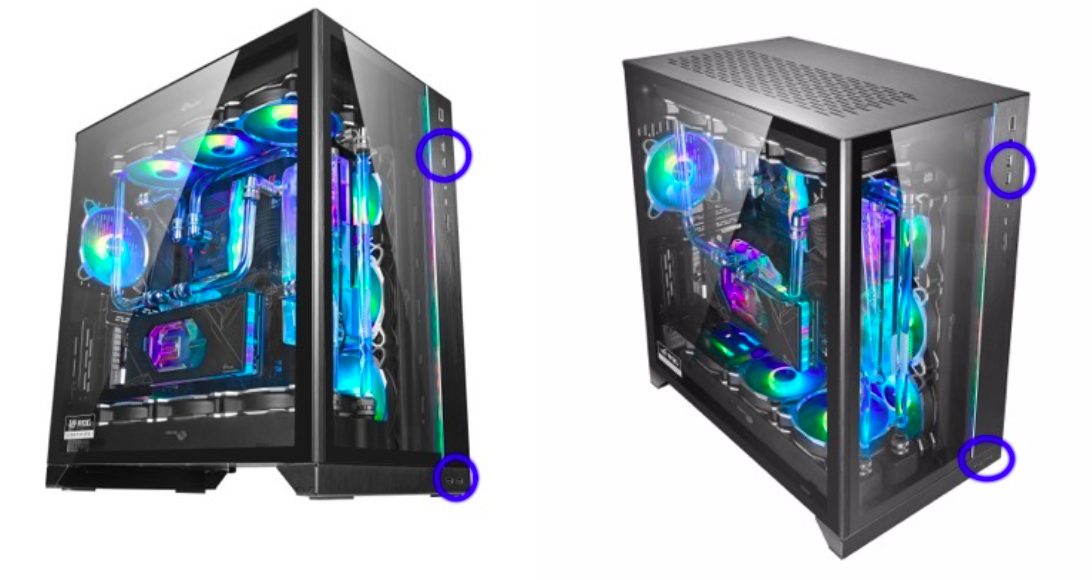

Featuring a fully addressable RGB strip alongside the front tempered glass panel, enthusiasts can personalize their chassis to match the inner system color scheme. Being ROG certified, the O11D XL’s LEDs are compatible with ASUS Aura for perfect synchronization of the system’s lighting effect. And to make sure everything is pleasing to the eye, the O11D XL features more space behind the motherboard tray, as well as angled rubber grommets for ease of cable management. In addition, a total of4 x USB 3.0 are strategically placed on the front panel,( 2 x USB 3.0 on the top right and 2 x USB 3.0bottom right to be more ergonomic whether the case is place on or under the desk. , 1 x USB 3.1 type C, as well as HD audio and mic ports, and an ARGB controller. Go ahead, make the dream PC, LIAN LI’s got your back with the O11 Dynamic XL.
O11DXL-X / O11DXL-WS Specifications | |
Case type | Full Tower chassis |
Structure | Dual-chamber |
Dimensions | (W) 285mm x (H) 513mm x (D) 471mm |
Color | Black, white |
Material | Tempered glass front and left panel.Aluminum top and right panel. |
Expansion slot | 8 |
2.5” SSD | 10 |
3.5” HDD | 4 (HOT SWAP) |
I/O ports | USB3.0 x 4, USB3.1 x1, HD audio, mic and ARGB controller at the front. |
MB type | EEB (35.5cm x 35.5cm) / E-ATX / ATX / Micro-ATX |
System fan | 3×12 cm fans or 2x 14 cm fans on the top. (Optional), 3x 12 cm or 2 x 14 cm fans on the bottom (Optional), 1 x 12 cm fan on the rear (optional) / 3 x 12 cm fans on the side (Optional) |
PSU | ATX PSU x3 (Optional) |
O11 Dynamic XL vs O11 Dynamic Comparison | ||
Features | O11 Dynamic | O11 Dynamic XL |
Material | Steel and tempered glass | Aluminum and tempered glass |
Dimensions | (W)272mm x (H)446mm x (D)445mm | (W)285mm x (H)513mm x (D)471mm |
I/O | USB3.0 x2 | USB3.0 x4 |
Fan support | 120mm x9 | 120mm x10 |
Radiator support | 360mm x3 (Tight fit) | 360mm x3 (plenty of clearance) |
Drives | 3.5” x 3 + 2.5” x 3 | 3.5” x 4 + 2.5” x 6 |
Motherboard | Up to E-ATX with restrictions | E-ATX and EEB |
PSU | Up to 2 | Up to 3 |
Others | 3 additional SSD trays can be installed on the front right side and/or the removable fan/SSD tray on the bottom | |
Slide release mechanism to push open the top panel | ||
Hot-swappable HDD tray (3.5” x 4) | ||
Fan/radiator bracket at the bottom (360mm/280mm) | ||
ARGB controller (can connect to the motherboard) | ||
Extractable dust filter at the bottom | ||
Optional kit | Extension panel for EEB MB support |
The O11 Dynamic XL is available starting today, August 30th, 2019, at an MSRP of $199.99 USD. For more information on the LIAN LI O11D XL, see the official product page here: http://www.lian-li.com/ o11d-rog/
To get your hands on the new O11D XL at NEWEGG:
Black https://bit.ly/2z6WV9l
White https://bit.ly/2NgeRXA
