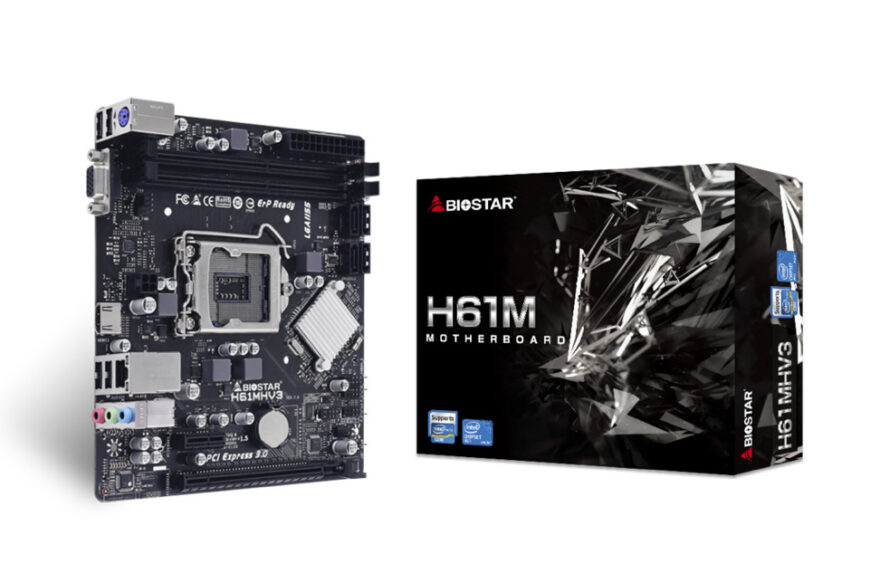

BIOSTAR announces a refresh of their Intel H61MH series with the new H61MHV3 motherboard.
Designed based on Intel’s H61 single chip architecture, the new H61MHV3 motherboard from BIOSTAR breathes a fresh breath of life to older 2nd and 3rd generation processors from Intel.
Highly suited for business use and HTPC systems, the H61MHV3 motherboard comes with BIOSTAR’s promised product reliability and long-lasting performance. It is capable of supporting up to 16GB of DDR3 memory across 2 DIMM slots. USB 2.0 support with 8 USB ports provided with the motherboard for ease of use.
Engineered to work well with Core i3, i5, i7, Pentium, and Celeron processors, the motherboard is designed with the latest components to provide smooth unhindered performance across all its components.
The H61MHV3’s rear I/O panel consists of a single x PS/2 Keyboard/Mouse port for users looking to connect their old keyboard or mouse to the system, Dual-display output capability with 1 x VGA port, and an HDMI port that expresses bright and highly detailed content.
Furthermore, it comes equipped with a single LAN port powered by Realtek RTL8111H chipset, 4 x USB 2.0 ports, and 3 x Audio out ports run by ALC897 audio codec capable of handling 7.1 Channels of High Definition Audio.
BIOSTAR’s new H61MHV3 motherboard brings new hope for people with older components to last longer, essentially saving money and time. It works well for business and casual use for multitudes of use cases.
Key Features
DDR3 Memory
- Provides higher operating performance and lower voltage than DDR2 SDRAM
PCIe 3.0
- Carries a bit rate of 8GT/s
- Enhances signal and data integrity
- Increases channel improvement
HDMI
- Enjoy TV shows and movies online
- Fills the entire screen with lifelike images
- Expresses bright and highly detailed content
HD AUDIO
- Multi-streaming: Multi-channel audio output and input
- Jack Retasking: Automatically switch the internal audio source line
- Better than AC’ 97 sound quality
OC.OV.OH
- More stable power management
Spec table:
| Model | H61MHV3 |
| Chipset | Intel® H61 |
| CPU SUPPORT | Support Intel Core i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1155 package * Please refer to www.biostar.com.tw for CPU support list. |
| MEMORY | Supports Dual Channel DDR3 1066/ 1333/ 1600 2 x DDR3 DIMM Memory Slot, Max. Supports up to 16 GB Memory Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 module * DDR3 1600 memory module (depending on CPU) * Please refer to www.biostar.com.tw for Memory support list. |
| STORAGE | 4x SATA II (3Gb/s) |
| LAN | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| AUDIO CODEC | ALC897 7.1 Channels, High Definition Audio |
| USB | 8x USB 2.0 port (4 on rear I/Os and 4 via internal headers) |
| EXPANSION SLOT | 1x PCIe 2.0 x1 1x PCIe 3.0 x16 Slot (x16 mode, depending on CPU) |
| REAR I/O | 1x PS/2 Keyboard / Mouse 1x VGA Port 1x HDMI Port 4x USB 2.0 Port 1x LAN port 3x Audio Jack |
| INTERNAL I/O | 4x SATA II (3Gb/s) 2x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1x 4-Pin Power Connector 1x 24-Pin Power Connector 1x CPU Fan Connector 1x System Fan Connector 1x Front Panel Header 1x Front Audio Header 1x Internal Stereo Speaker Header 1x Clear CMOS Header 1x COM Port Header |
| DIMENSION | uATX Form Factor, 191 mm x 170 mm |
| OS SUPPORT | Windows 7/ 8/ 8.1/ 10 Biostar reserves the right to add or remove support for any OS with or without notice. |
| ACCESSORIES | 2 x SATA Cable 1 x Rear I/O Panel for ATX Case 1 x Quick Guide 1 x DVD Driver |
Learn More about the H61MHV3 here:
https://www.biostar.com.tw/app/en/mb/introduction.php?S_ID=1017
