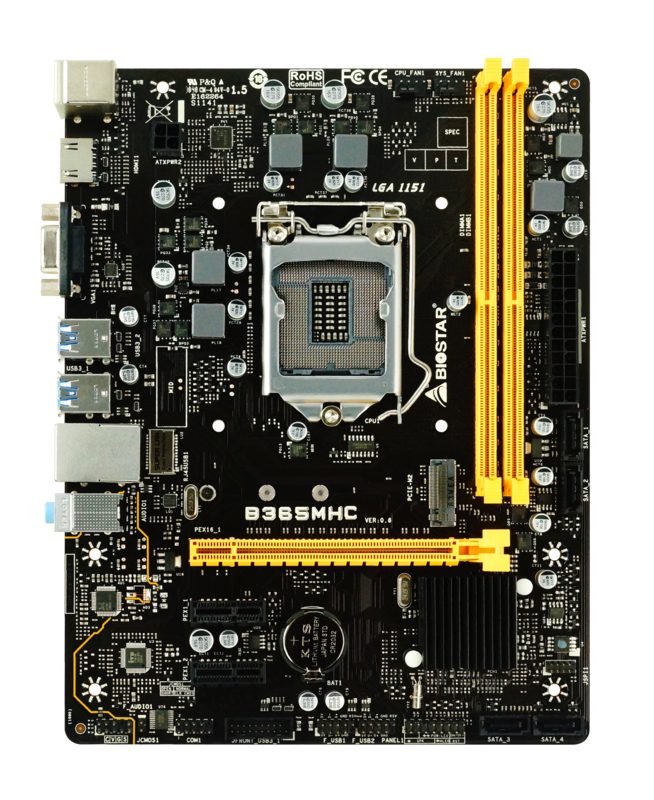

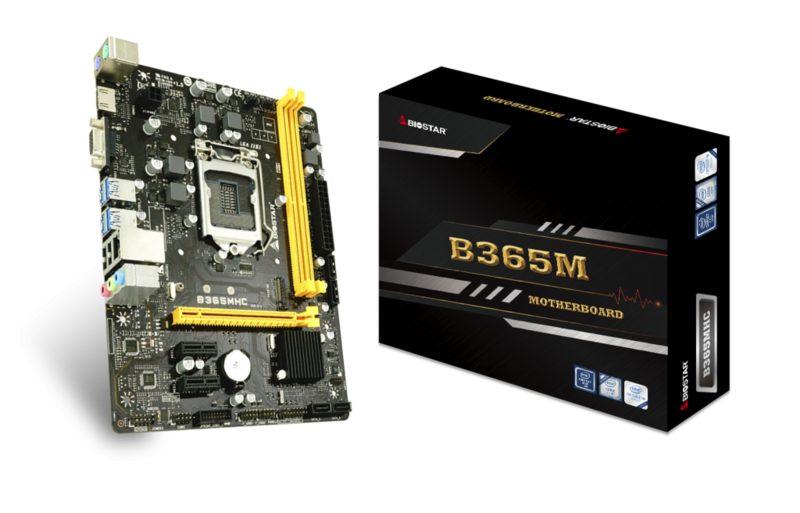

BIOSTAR, a leading manufacturer of motherboards, graphics cards, and storage devices, announces the latest B365 series motherboard supporting the newest 9th and 8th Generation Intel Core Processor in a compact Micro ATX form factor, the BIOSTAR B365MHC. It is perfect for running office tasks to browsing the web and watching videos online.
The Micro ATX form factor allows the motherboard to fit in most PC cases making it perfect for office space saving while being packed with features including supporting up to 32GB of DDR4 memory at 2666 MHz, GbE LAN with Super LAN surge protection for enhanced bandwidth capacity, stability and superior performance. HDMI offers up to a 4K resolution with highly detailed content, while the PCIe M.2 expansion slot offers up to 32Gb/s and supports for Intel Optane Technology which reduces boot times and improves overall performance. The BIOSTAR B365MHC is designed to offer unanimity with Intel’s B365 chipset to give the power and performance needed for office and home multimedia uses.
|PCI-E M.2 |
PCI-e M.2 32Gb/s is the latest storage interface, it delivers the highest bandwidth and lower latency. It is 3 times faster compared with PCI-e M.2 10Gb/s.
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display brighter and has more detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.
The primary advantages of DDR4 over DDR3, include higher module density, lower voltage requirements, coupled with higher data transfer rate.
USB 3.1 Gen 1 Type-A
Experience Fastest data transfers at 5 Gbps with USB 3.1 Gen 1- the new latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.1 Gen 1 transfers data 10X faster and backward compatible with previous USB 2.0 components.
|Intel Optane Memory|
BIOSTAR incorporates the Intel Optane memory technology to refresh the performance of your PC by accelerating traditional storage devices to reduce boot times and improve the overall performance without adding a SSD.
|Super LAN Surge Protection |
Super LAN Surge Protection, providing LAN with more advanced antistatic protection capabilities by adding an integrated chip to strengthen electrical stability and prevents damage from lightning strikes and electrical surges.
Update BIOS effortlessly from a USB flash disk before entering the OS. BIO-Flasher is a convenient BIOS update tool. Just launch this tool and put the BIOS on USB pen driver before entering the OS. You can update your BIOS with only a few clicks without preparing an additional floppy disk or other complicated flash utility.
A Fully Comprehensive I/O System
The BIOSTAR B365MHC features: 1x PS/2 Keyboard / Mouse, 1x VGA Port and 1x HDMI Port. Further features are: 1x GbE LAN port, 4x USB 3.1 Gen1 Ports, 2x USB 2 Ports and 3x Audio Jack.
The BIOSTAR B365MHC, is the company’s latest model for the B365 chipset which incorporates some of the latest technologies and features including PCIe M.2 32Gb/s, USB 3.1 Gen 1 to allow for data transfer speeds up to 5G, GbE LAN, support for 2-DIMM DDR4 memory for up to 32GB at 2666MHz all conveniently packaged in a space saving Micro ATX form factor.
|CPU SUPPORT||Socket 1151 for 9th and 8th Gen Intel Core, Pentium and Celeron processors|
Maximum CPU TDP (Thermal Design Power): 95 Watt
*9th & 8th Generation Intel CoreTM Processor Family only support 300-Series.
|MEMORY||Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz|
2 x DDR4 DIMM Memory Slots
Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
|INTEGRATED VIDEO||By CPU model|
|STORAGE||4 x SATA3 Connectors (6Gb/s)|
1 x M.2 Key M 32Gb/s Connector: Supports PCI-E & SATA SSD, Intel Optane Technology
|LAN||Realtek RTL8111H – 10/100/1000Mb/s Controller|
|CODEC||Realtek ALC887 8-Channel HD Audio|
Supports HD Audio
|USB||6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal headers)|
6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal headers)
|EXPANSION SLOT||1 x PCI-E 3.0 x16 Slot|
2 x PCI-E 3.0 x1 Slots
|REAR I/O||1 x PS/2 Mouse|
1 x PS/2 Keyboard
4 x USB 3.1 Gen1 Ports
2 x USB 2.0 Ports
1 x HDMI Connector
1 x VGA Port
1 x LAN port
3 x Audio Jacks
|INTERNAL I/O||1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1 Gen1 ports)|
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
4 x SATA3 6Gb/s Connectors
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
|DIMENSION||Micro ATX Form Factor Dimension: 22.8cm x 17.7 cm ( W x L )|
|OS SUPPORT||Supports Windows 10(64bit)|
*BIOSTAR reserves the right to add or remove support for any OS with or without notice.
|ACCESSORIES||2 x SATA Cables|
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
